Messer Cutting Systems’ PlateMaser II is an economical solution for plate cutting needs. Rugged floor-mounted rails are machined from 90 lb/yd crane rail stock and heavy, internationally gusseted end trucks support the dual box beam for smooth motion.
- Precision plasma up to 800 amps.
- Oxy-fuel cutting.
- Travels at a rapid speed of 1400 IPM.
- Machine widths: from 6′, 8’ to 12’ ( 1.82, 2.5m to 3.657m). Lengths from 10’ to 72’ (3m to 21.9456m).
- Material Thickness Capacity: Plasma 26 ga. to 6″ (52mm) depending on plasma and material, 1/8″ to 12″ (3mm to 305mm) with oxyfuel.
- Materials processed: mild steel, stainless steel, and aluminum.
- GlobalControls.
- Left hand mounted control tilts and swivels for operator comfort.
Contact
Messer Cutting Systems, Inc.
Downloads
COMPONENTS
Messer offers a variety of process tools. All Messer machines are completely customized. The benefits of a customized cutting machine fit for your company’s needs can make you the leader of productivity in your industry. When you need a machine that outperforms all others and provides you with the capability of bevel cutting, drilling, tapping, and marking, all on a variety of materials from thin plate to thick steel with an excellent cut part quality, then Messer Cutting Systems is your machine of choice.
Alfa
The Messer Cutting Systems developed ALFA oxy-fuel torch takes oxy-fuel cutting to an entirely new level. The ALFA torch internalizes many features that used to have to be on the outside of an oxy-fuel torch, including height sensing and auto-ignition.
MS 832/Turbo Torch
Our Turbo Flame™ Torch is very versatile, able to be used with a variety of fuel gases and is very safe to operate.
FT100 Torch Ignitor
Messer Cutting Systems FT100 Torch Ignitor remotely ignites any brand of oxyfuel torch. Since no arc is struck, critical alignment is not needed allowing for easy and fast tip change out.
Omniflow Automatic Gas Control System
The Omniflow Automatic Gas Control System delivers automatic setting and regulation of preheat oxygen, cutting oxygen and fuel gas pressure during oxyfuel cutting.
Straight Line Plasma Cutting
Our products cover the whole range of cutting tasks in modern metal industries. Using different thermal cutting technologies for straight plasma cutting, our machines can be easily adapted to your shop’s requirements.
Manual Plasma Bevel Stripping Unit
Messer Cutting Systems’ Manual Plasma Bevel Unit provides an adapter mounting between the SureStop breakaway and the lifter. This component enables straight-line motion bevel cutting in the X-axis.
Air Scribe Marking
The Air Scribe marker uses a reciprocating pin to mark on mild steel, stainless steel, and aluminum plate. The marker can be used with any plate thickness.
Inkjet Marking
Ink-jet marking delivers fast and quiet alphanumeric labeling with printing in one direction of travel for non-rotational unit or multi-directional with rotating unit.
Plasma Marking
Plasma marking is suitable for the engraving of lines, contours and characters on plate surfaces.
EL-170
Messer Cutting Systems' EL-170 Oxyfuel Lifter provides motorized vertical positioning on an oxyfuel torch at 118 IPM with 6.7" stroke. An optional feature on the PlateMaster II cutting machine.
SL-200, SL-300 SmartLifters
The SL200 PLASMA AND OXYFUEL SMARTLIFTERS include several productivity enhancing features to produce more parts in a shorter period of time. An adaptive initial height sense system “learns” the height of the plate on the cutting table to quickly position the torch to the correct pierce height.
CSL200 Plasma Lifter
Messer Cutting Systems CSL Lifter is an adaptive initial height system for plasma torches allowing for faster plate cutting.
PL-1 Lifter with Surestop Collision Sensor
Messer Cutting Systems’ PL-1 Plasma Torch Lifter combines plasma arc voltage monitoring with a CNC closed-loop positioning axis to significantly enhance plasma height control in plasma cutting. This enhanced height control results in a higher duty cycle and better cut quality. The Surestop Collision sensor for fast and easy torch reset.
SensoMat-PAN
SensoMat®-PAN Height Sensing for oxyfuel reliably maintains the proper standoff distance between the oxyfuel torch tip and the work piece, without operator intervention.
Laser Pointer
Our Laser Pointer enables the operator to identify the edge or other feature of the plate physically with a known location on the cutting machine, simplifying the basic setting, shortening throughput times and avoiding scrap.
Digital Video Camera
Monitor the cutting process with Messer Cutting Systems’ Digital Video Camera. This product assists in remote diagnostics using Virtual Service™ and gives your team the benefit of having a bird’s-eye view of the cutting process.
Plasma Air Booster
Plasma air booster is a low cost alternative to an expensive air compressor. Available for all machines with a plasma system.150 PSI per CFM.
Dual Hi-Lo
Dual Hi-Lo Manual Gas Control System is an economical gas control solution for oxy-fuel.
Slagger
The Slagger® cutting table is like no other in its ability to move slag. Whether produced from oxyfuel or plasma cutting, slag moves from one side of the table and deposits the slag into a collection bucket at the end of the table in just minutes.
Downdraft
The downdraft cutting table is like no other cutting table anywhere. The downdraft is specially designed to work with smaller machines and has a maximum plate capacity of 3" thick plate.
Camfill APC
Camfil APC is one of the top dust collector manufacturers worldwide with over 50 years of experience. Their dust collectors are specially engineered and designed with cutting machines in mind.
Donaldson
Donaldson provides filtration systems and replacement parts. Since 1915, Donaldson has developed its innovative technology, built strong customer relationships, and developed a broad geographic presence. Today they offer some of the highest quality dust collectors on the market.
Global Control S
Easy-to-use, feature rich, Windows® interface. The Global Control S is a compact touch screen process database featuring custom shape library, CAD import, and true-shape nesting. Virtual Service puts Service experts one push button away. Easy to learn functions allow employees to become expert operators in minutes.

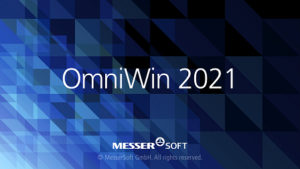

OmniWin
MesserSoft OmniWin software is a simple, clear and fast designing and nesting software developed by MesserSoft. This software specially created for Messer machines, adapts intelligently, taking over cutting tasks for order-based production with additional CNC thermal cutting machines.
Customer Service
With 360° Messer Service we offer you five-star service programs ensuring your machine productivity and longevity. An important part of your business success is …
Maintenance
Purchase Preventative Maintenance and receive 30% savings on labor rates from a certified Messer technician. Plus 10% off on all related parts purchases; Plus 50% …
Virtual Service
Messer Cutting System offers the Virtual Service™ program in support of our complete line of cutting machines. This unique package allows our team of experts …
Training
In times of increasing competitive pressure, it is only logical to invest in the expertise and competence of your employees. After all, not only should …
Application
We see ourselves as customer oriented and innovative consultants. We to want help you open up new horizons of productivity to exceed your current demands …
Spare Parts & Consumables
Ensure optimum productivity for your systems by using original spare parts and consumables. We have current spare parts and consumables available for you with fast …
learn More
The PlateMaster II can support two high-performance plasma systems and up to six oxyfuel systems including the ALFA Oxyfuel Torch which has integrated ignition and probe less height control. All torch systems are suspended by the Messer PL-1 with SureStop Collision Sensor and the EL-170 of torch lifters they are both rugged, high speed, low maintenance and provide rigid torch support for the smoothest cut finish.
Equipped with the Global Controls, with an easy-to-use, feature-rich, operator interface allows employees to become expert operators in minutes.
