Your Highly-Flexible Drilling and Milling Machine

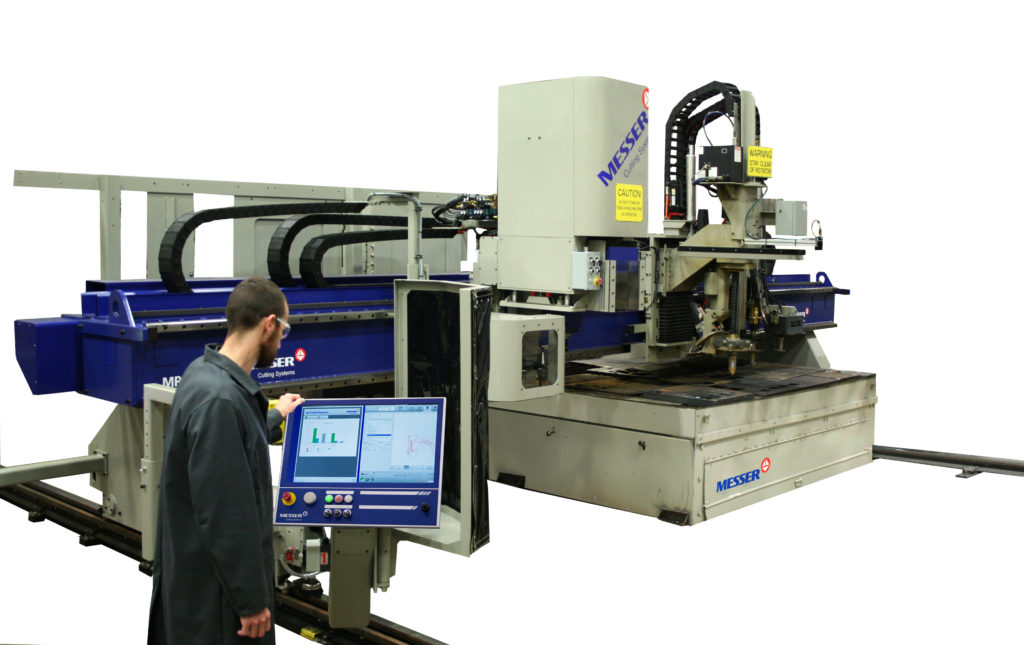

The MPC2000 is a multi-process Messer cutting machine and heavy-duty workhorse. This machine can be equipped with multiple carriages, as well as up to five separate processes including precision plasma beveling, oxyfuel beveling, 2″ drilling, and markers.
The MPC2000 features enhanced linear motion ways, and state-of-the-art AC servo drives provide dependable machine tool performance.
The rugged dual beam construction makes it tough enough to keep cutting, even through high production, working three work shifts with 24/7 operation. Long-life band drives and larger end-trucks offer strength and stability for improved accuracy, repeatability, and durability across a range of processes for workshop efficiency.
Built for Heavy Duty Construction, Structural Steel, Shipbuilding and Steel Service Centers
The MPC2000 is suited for ship builders and steel service centers alike. From Big Agra to the rail industry and a number of material handling environments, the MPC2000 can provide immense benefits with its durable construction, flexibility, and reliable performance across processes.
Suited for Transportation Industries
This versatile and flexible machine is suitable for a wide range of applications, from truck manufacturing to tank cutting. The MPC2000 performs well in a variety of industries and environments due to its highly-flexible design.

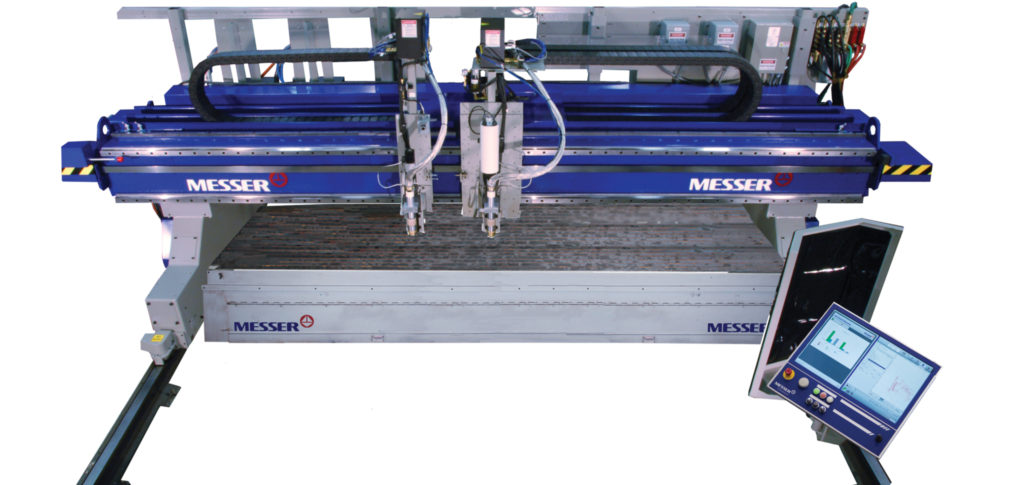

Standard MPC2000 Machine Features
The MPC2000 is a multi-process cutting machine designed for dependable, durable performance.
Performance capabilities include:
- Cutting width: 8′ (2.438m) to 28′ (8.534m).
- Cutting length: up to 200′ (60.69m).
- Contouring speeds: up to 400 ipm.
- Positioning speeds: up to 1400 ipm.
- Material Thickness Capacity: 26 ga. to 8″ (203.2mm) dependent on process.
- Materials Processed: Mild Steel, Stainless Steel, and Aluminum.
The dynamic construction of the MPC2000 also includes the following standard features:
- Can be equipped with multiple carriages and up to five separate processes.
- Includes linear motion ways and state-of-the-art AC servo drives.
- Capacity to install a total of four separate tool stations, including plasma torches, oxyfuel torches, and markers.
- SureStop Collision Sensor.
- Remote consultation and diagnostics with Messer’s Virtual and Visual Service™.
Global Plus Software
GlobalControlPlus comes standard on the MPC2000 with easy-to-use learn, touchscreen interface which is easy to comprehend, and operate. Equipped with the latest software technology, OmniWin, OmniBevel or OmniFab (tailor-made, customized workflow for maximum production).
Contact
Messer Cutting Systems, Inc.
Downloads
Optional MPC2000 Features
Here is a snapshot of additional optional features you can select. For additional optional equipment please see the Components section below.
Curved Beveling Capacity Plasma
Plasma bevel cutters on the MPC2000 delivers clean, smooth cut part edges and precise cut holes with high accuracy and repeatability, as well as thicker material cutting capacity.
Your options for plasma beveling units include the Global Rotator Deltae (compound skew bevel unit) and Global Control Infinity (heavy-duty compound skew bevel unit). Both Rotators offer bevel types K, V, X, Y, I bevel angles, +45° to -45°.
You can also choose the Manual Plasma Stripping Bevel Unit for the X-Axis, bevel types V, I bevel angles, +45° to -45°.
Curved Beveling Oxyfuel Capacity
For curved oxyfuel beveling, you can choose from the following units:
- Triple Torch DAF/L with automatic positioning. Material thickness up to 3½”, center torch straight up to 4 ¾ ”, K, V, X, Y bevel types 15° to 45°.
- Single Position and Three Position Oxyfuel Bevel Units with manual positioning.
- Contour Bevel Unit with semi-automatic positioning. Material thickness up to 7 ¾ ”, center torch straight up to 12”, K, V, X, Y bevel types 15° to 45°.
Drilling Capabilities
With the MPC2000, you’ll have access to high-performance, reliable drilling to improve your drilling operations. All processes are done with the same set-up, providing accurate feature-to feature relationships, both within a single piece and part to part.
- Electric Drill Unit: Drilling up to ¾” diameter.
- MD200 Heavy-Duty Drill Unit: Dilling up to 2” diameter. Tapping up to 1″.
COMPONENTS
Messer offers a variety of process tools. All Messer machines are completely customized. The benefits of a customized cutting machine fit for your company’s needs can make you the leader of productivity in your industry. When you need a machine that outperforms all others and provides you with the capability of bevel cutting, drilling, tapping, and marking, all on a variety of materials from thin plate to thick steel with an excellent cut part quality, then Messer Cutting Systems is your machine of choice.
ALFA
The Messer Cutting Systems developed ALFA oxy-fuel torch takes oxy-fuel cutting to an entirely new level. The ALFA torch internalizes many features that used to have to be on the outside of an oxy-fuel torch, including height sensing and auto-ignition.
MS 832/Turbo Torch
Our Turbo Flame™ Torch is very versatile, able to be used with a variety of fuel gases and is very safe to operate.
FT100 Torch Ignitor
Messer Cutting Systems FT100 Torch Ignitor remotely ignites any brand of oxyfuel torch. Since no arc is struck, critical alignment is not needed allowing for easy and fast tip change out.
Omniflow Automatic Gas Control System
The Omniflow Automatic Gas Control System delivers automatic setting and regulation of preheat oxygen, cutting oxygen and fuel gas pressure during oxyfuel cutting.
DAF/L
The automatic infinitely rotating triple bevel head D/AFL is created for V, X, Y and K cuts.
Single Position Oxyfuel Bevel Unit
Manually adjusted Single Position Triple Torch Oxy-fuel Bevel Unit for straight line bevels with manual ignition and gas adjustment.
Three Position Oxyfuel Bevel Unit
Manually adjusted Triple Torch Oxyfuel Bevel Unit for straight line bevels with manual gas adjustment and manual ignition.
Oxyfuel Contour Bevel Unit
The Oxy-fuel Contour Bevel Unit provides continuous bevel cuts in mild steel with automatic contour control, manual ignition and bevel angle adjustment.
Straight Plasma Cutting
Our products cover the whole range of cutting tasks in modern metal industries. Using different thermal cutting technologies for straight plasma cutting, our machines can be easily adapted to your shop’s requirements.
Infinity Rotator
This heavy-duty Skew Rotator Infinity continuous rotation is capable of accurately cutting bevel profiles (non-vertical) on nearly any contour.
Global Rotator Delta e
Robust compact design, coupled with our OmniBevel software, creates the best plasma bevel cut parts.
Manual Plasma Stripping Bevel Unit
Messer Cutting Systems’ Manual Plasma Bevel Unit provides an adapter mounting between the SureStop breakaway and the lifter. This component enables straight-line motion bevel cutting in the X-axis.
Air Scribe Marking
The Air Scribe marker uses a reciprocating pin to mark on mild steel, stainless steel, and aluminum plate. The marker can be used with any plate thickness.
Plasma Marking
Plasma marking is suitable for the engraving of lines, contours and characters on plate surfaces.
Inkjet Marking
Ink-jet marking delivers fast and quiet alphanumeric labeling with printing in one direction of travel for non-rotational unit or multi-directional with rotating unit.
Telesis Pinstamp
The Telesis® Pinstamp® marking system uses a reciprocating stylus permanently prints messages on to a variety of plate such as mild steel, stainless steel, and aluminum.
Electric Drilling Unit
An optional drill feature can be combined with a normal plasma and oxyfuel cutting, allowing for form work to be done on the piece part in a single handling.
Heavy-Duty Drill Unit
An optional drill feature can be combined with Plasma and Oxyfuel cutting allowing for more work to be done on the piece part in a single handling. All processes are done in the same set-up, providing accurate, feature-to-feature relationships, both within a single piece and from part-to-part.
SL-200, SL-300 Oxyfuel SmartLifter
The SL200 PLASMA AND OXYFUEL SMARTLIFTERS include several productivity enhancing features to produce more parts in a shorter period of time. An adaptive initial height sense system “learns” the height of the plate on the cutting table to quickly position the torch to the correct pierce height.
PL-1 Lifter with Surestop Collision Sensor
Messer Cutting Systems’ PL-1 Plasma Torch Lifter combines plasma arc voltage monitoring with a CNC closed-loop positioning axis to significantly enhance plasma height control in plasma cutting. This enhanced height control results in a higher duty cycle and better cut quality. The Surestop Collision sensor for fast and easy torch reset.
SensoMat-PAN
SensoMat®-PAN Height Sensing for oxyfuel reliably maintains the proper standoff distance between the oxyfuel torch tip and the work piece, without operator intervention.
Laser Pointer
Our Laser Pointer enables the operator to identify the edge or other feature of the plate physically with a known location on the cutting machine, simplifying the basic setting, shortening throughput times and avoiding scrap.
Digital Video Camera
Monitor the cutting process with Messer Cutting Systems’ Digital Video Camera. This product assists in remote diagnostics using Virtual Service™ and gives your team the benefit of having a bird’s-eye view of the cutting process.
Video Camera Manual Plate Alignment
Monitor the cutting process with a Video Camera for Manual Plate Alignment. The image is conveniently displayed on the 24" TFT color screen of the Global Control Plus.
Plasma Air Booster
Plasma air booster is a low cost alternative to an expensive air compressor. Available for all machines with a plasma system.150 PSI per CFM.
Dual Hi-Lo
Dual Hi-Lo Manual Gas Control System is an economical gas control solution for oxy-fuel.
Slagger
The Slagger® cutting table is like no other in its ability to move slag. Whether produced from oxyfuel or plasma cutting, slag moves from one side of the table and deposits the slag into a collection bucket at the end of the table in just minutes.
Down Draft
The downdraft cutting table is like no other cutting table anywhere. The downdraft is specially designed to work with smaller machines and has a maximum plate capacity of 3" thick plate.
Camfill APC
Camfil APC is one of the top dust collector manufacturers worldwide with over 50 years of experience. Their dust collectors are specially engineered and designed with cutting machines in mind.
Donaldson
Donaldson provides filtration systems and replacement parts. Since 1915, Donaldson has developed its innovative technology, built strong customer relationships, and developed a broad geographic presence. Today they offer some of the highest quality dust collectors on the market.
Global Control Plus
Easy-to-use, feature rich, Windows® interface. The Global Control Plus has a 24” touch screen with multiple process databases. A few of the key features include custom shape library, true shape nesting and productivity monitoring. Remote diagnostics and applications support is available with a push of a button.
OmniWin
MesserSoft OmniWin software is a simple, clear and fast designing and nesting software developed by MesserSoft. This software specially created for Messer machines, adapts intelligently, taking over cutting tasks for order-based production with additional CNC thermal cutting machines.
OmniBevel
OmniBevel is the professional software product for bevel cutting. It represents straight cuts, cylindrical holes, exact bevel angles and parts with absolute dimensional accuracy.
Customer Service
With 360° Messer Service we offer you five-star service programs ensuring your machine productivity and longevity. An important part of your business success is …
Maintenance
Purchase Preventative Maintenance and receive 30% savings on labor rates from a certified Messer technician. Plus 10% off on all related parts purchases; Plus 50% …
Virtual Service
Messer Cutting System offers the Virtual Service™ program in support of our complete line of cutting machines. This unique package allows our team of experts …
Training
In times of increasing competitive pressure, it is only logical to invest in the expertise and competence of your employees. After all, not only should …
Application
We see ourselves as customer oriented and innovative consultants. We to want help you open up new horizons of productivity to exceed your current demands …
Spare Parts & Consumables
Ensure optimum productivity for your systems by using original spare parts and consumables. We have current spare parts and consumables available for you with fast …
